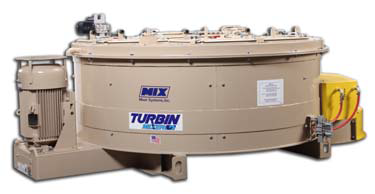

Turbin XL
Mixer Systems
Now in its fourth generation, the legendary Turbin XL® has been the industry standard for more than 70 years. Made with pride by Mixer Systems, the Turbin XL is simply the fastest, most economical producer of a high quality mix.
Mixer Tank
- 3/16” thick steel tank wall
- 3/8” thick steel tank floor
- Tank is welded to structural steel channel frame
- Channel frame has lifting lugs for unloading and handling of mixer
Liners
- Abrasion resistant steel floor liners
- Abrasion resistant steel wall liners
- All are replaceable, bolted segments
Wall Scrapers and Paddles
- Formed steel arms with replaceable rubber wear guards
- Inside and outside replaceable cast Ni-hard scrapers
- Cast Ni-hard, or rubber, replaceable floor paddles
Discharge Door
- Steel door pivots on self-lubricated sleeve bearing
- Up to 3 doors at 90 degree increments
- Air cylinder operated linkage with discharge valve
- Flow control valve for speed adjustment
- Air line lubricator and moisture trap
Drive Train
- Gyro-drive unit
- Removable through top or bottom of mixer
- Oil lube system with pump, flow switch and reservoir
- Belt-driven from reducer to motor
- TEFC 230/460 volt, 3 phase, 60 hertz motor
Lubrication System
- Electrically operated, automatic lubrication system
- All seals remain lubricated at all times
Mixer Cover
- Steel top cover lid
- Hinged access doors on top of mixer
- One door will have a hinged inspection door
- Doors are gasketed for dust and water containment
- Doors include ‘doors closed’ interlock switches
Paint
- One color, high grade machinery enamel
Item # |
Model |
Input Capacity |
Motor hp |
---|---|---|---|
13 CU FT 13 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 50 | Input Capacity N/A 13 CU FT or 1,300 LBS | Motor hp N/A 20 |
27 CU FT 27 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 100 | Input Capacity N/A 27 CU FT or 2,700 LBS | Motor hp N/A 40 |
41 CU FT 41 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 150 | Input Capacity N/A 41 CU FT or 4,100 LBS | Motor hp N/A 50 |
72 CU FT 72 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 200 | Input Capacity N/A 72 CU FT or 7,200 LBS | Motor hp N/A 100 |
81 CU FT 81 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 300 | Input Capacity N/A 81 CU FT or 8,100 LBS | Motor hp N/A 100 |
121 CU FT 121 CU FT/Asset/Turbin-Mixer-Closed-Door.png | Model N/A 450 | Input Capacity N/A 121 CU FT or 12,100 LBS | Motor hp N/A 150 |
