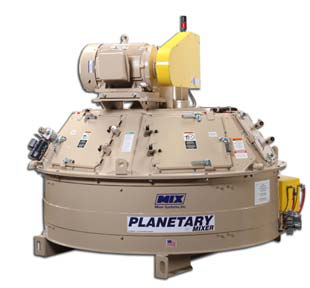

Planetary Mixer
Mixer Systems
Planetary Mixers from Mixer Systems are the only ones of their type designed and manufactured in America. The planetary mixer produces a unique “counter-current” mixing action, resulting in a fast, homogeneous mix in as little as 30 seconds.
Mixer Tank
- 3/16” thick steel tank wall
- 3/8” thick steel tank floor
- Tank is welded to structural steel channel frame
- Channel frame has lifting lugs for unloading and handling of mixer
Liners
- Abrasion resistant steel floor liners
- Abrasion resistant steel wall liners
- All are replaceable, bolted segments
Wall Scrapers and Paddles
- Formed steel arms with replaceable rubber wear guards
- Inside and outside replaceable cast Ni-hard scrapers
- Cast Ni-hard, or rubber, replaceable floor paddles
Discharge Door
- Steel door pivots on self-lubricated sleeve bearing
- Up to 4 doors at 90 degree increments
- Air cylinder operated linkage with discharge valve
- Flow control valve for speed adjustment
- Air line lubricator and moisture trap
Drive Train
- Planetary drive unit
- Direct drive on Model 0.5
- Belt-driven from reducer to motor on all other models
- Removable from top of mixer
- TEFC 230/460 volt, 3 phase, 60 hertz motor
Lubrication System
- Static oil system on Models 0.5, 1.0 and 1.5
- Oil lube system with pump, flow switch and reservoir on Models 2.0, 3.0 and 4.0
Mixer Cover
- Steel top cover lid
- Hinged access doors on top of mixer
- One door will have a hinged inspection door
- Doors are gasketed for dust and water containment
- Doors include ‘doors closed’ interlock switches
Paint
- One color, high grade machinery enamel
Item # |
Model |
Motor hp |
Input Capacity |
---|---|---|---|
19 CU FT 19 CU FT/Asset/Planetary-Mixer-Closed-Door.png | Model N/A 0.5 | Motor hp N/A 15 | Input Capacity N/A 19 CU FT or 1,900 LBS |
41 CU FT 41 CU FT/Asset/Planetary-Mixer-Closed-Door.png | Model N/A 1.0 | Motor hp N/A 50 | Input Capacity N/A 41 CU FT or 4,100 LBS |
61 CU FT 61 CU FT/Asset/Planetary-Mixer-Closed-Door.png | Model N/A 1.5 | Motor hp N/A 60 | Input Capacity N/A 61 CU FT or 6,100 LBS |
81 CU FT 81 CU FT/Asset/Planetary-Mixer-Closed-Door.png | Model N/A Model 2.0 | Motor hp N/A 100 | Input Capacity N/A 81 CU FT or 8,100 LBS |
125 CU FT 125 CU FT/Asset/Planetary-Mixer-Closed-Door.png | Model N/A 3.0 | Motor hp N/A 125 | Input Capacity N/A 125 CU FT or 12,500 LBS |
161 CU FT or 16,100 LBS 161 CU FT or 16,100 LBS/Asset/Planetary-Mixer-Closed-Door.png | Model N/A 4.0 | Motor hp N/A 150 | Input Capacity N/A 161 CU FT or 16,100 LBS |
